    4 Roll Mechanical / Hydro-Mechanical Double Pinch Type Plate Bending Machine back

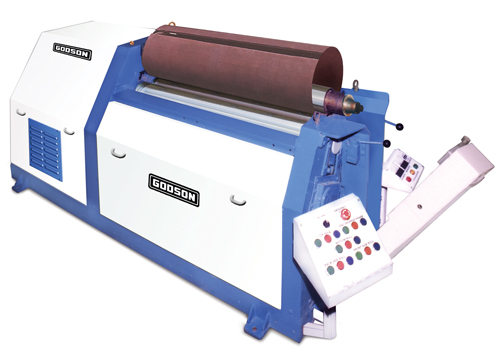

  4 Roll Mechanical / Hydro-Mechanical Double Pinch Type Plate Bending Machine


‘GODSON' 4 Roll double pinch type machine is designed for light, medium & heavy gauge plates with double pinch and pre bending operation. This one incorporates a fixed top roll and 2 nos. Side rolls and one bottom roll, all 3 are independently adjustable. This machines is with the same arrangement of 3 roll double pinch type machine but adds another bottom roll in between of two side rolls. This allows pre-bending for more closer area than pre-bending obtain in 3 roll machine. This is very much helpful while doing small diameter jobs. This machine which controls two edge pre-bending with one insertion of steel plate in the machine, for pre-bending is the way reduce the flat end of plate to minimum on the both two edges, This is accomplished by clamping the steel plate by top and central bottom roll and bending the clamped portion by individual Gear Box & Electric Brake motor, in mechanical version the same is carried out by Hydraulic Power Pack unit & individual hydraulic cylinders in hydro mechanical version.

Benefits of 4 Roll Bending Machine:
arrow Plate handling easier as plate is fed horizontally.
arrow Less dependence on operator skill for multi-radii profiles.
arrow Best possible alignment of the plate edge against rear side roll.
arrow Pre-bending may reduce the flat edge up to one plate thickness.
arrow Effective plate gripping-feeding throughout bending cycle.
arrow Versatile-suitable for thin & thick sheets, small and large diameters.
arrow High productivity and accuracy.
arrow No need to traveling crane during bending process.

The Inter Changeable Top Roll.
When is necessary or desirable to roll material to diameters smaller than Could be possible with standard top roll, an interchangeable top roll of the Required size can replace the standard top roll. Change over time is very less. The cost as really low and in may cases the need of buying a another machine Can be avoided.

GODSON 4 Roll machine is ideal for following applications…
Submersible pump stainless steel body cover, Silencers, Exhaust pipes, Catalytic converters, Air tanks for truck air brakes and painting compressors, small water heaters, Chimney flues, Small LPG & CNG cylinders, Fire extinguishers, Solar water heater tank and when small diameters are necessary & required.

CAPACITY
Width: 500 m.m. to 2000 m.m.
Thickness: 1 m.m. to 6 m.m.
